In an era of heightened quality expectations, manufacturers must go beyond traditional inspection to secure both customer trust and operational efficiency. A cutting-edge warranty management system built on a robust machine vision system and AOI system infrastructure offers a game-changing paradigm. It enables traceable, data‑driven warranty resolution and near‑perfect defect control.
1. The Warranty Management Challenge in Manufacturing
Warranty claims are a double-edged sword. On one side, they serve as a warranty of quality and a pathway to customer satisfaction. On the other hand, they create financial liability, reputational risk, and operational overhead. Conventional approaches—manual inspection and paper‑based records—leave manufacturers blind to defect origins, lack timely traceability, and often are too late to prevent customer dissatisfaction.
2. Integrating Machine Vision into Warranty Management Systems
Advanced machine vision systems, empowered by artificial intelligence, are enabling manufacturers to trace every product, assembly step, and inspection outcome — all logged digitally. These systems deploy high-resolution imagery, ultrasonic lighting, optics, and analytical software at each critical stage:
- Automated Optical Inspection (AOI system) to detect surface defects
- Assembly verification cameras to ensure correct parts and sequence
- Real-time reporting for each unit or lot, mapped to serial numbers or barcodes
By embedding this infrastructure, companies transform reactive warranty processes into proactive, evidence-based systems.
3. Anatomy of a Modern AOI‑Powered Machine Vision System
A robust AOI system geared for warranty-grade performance consists of:

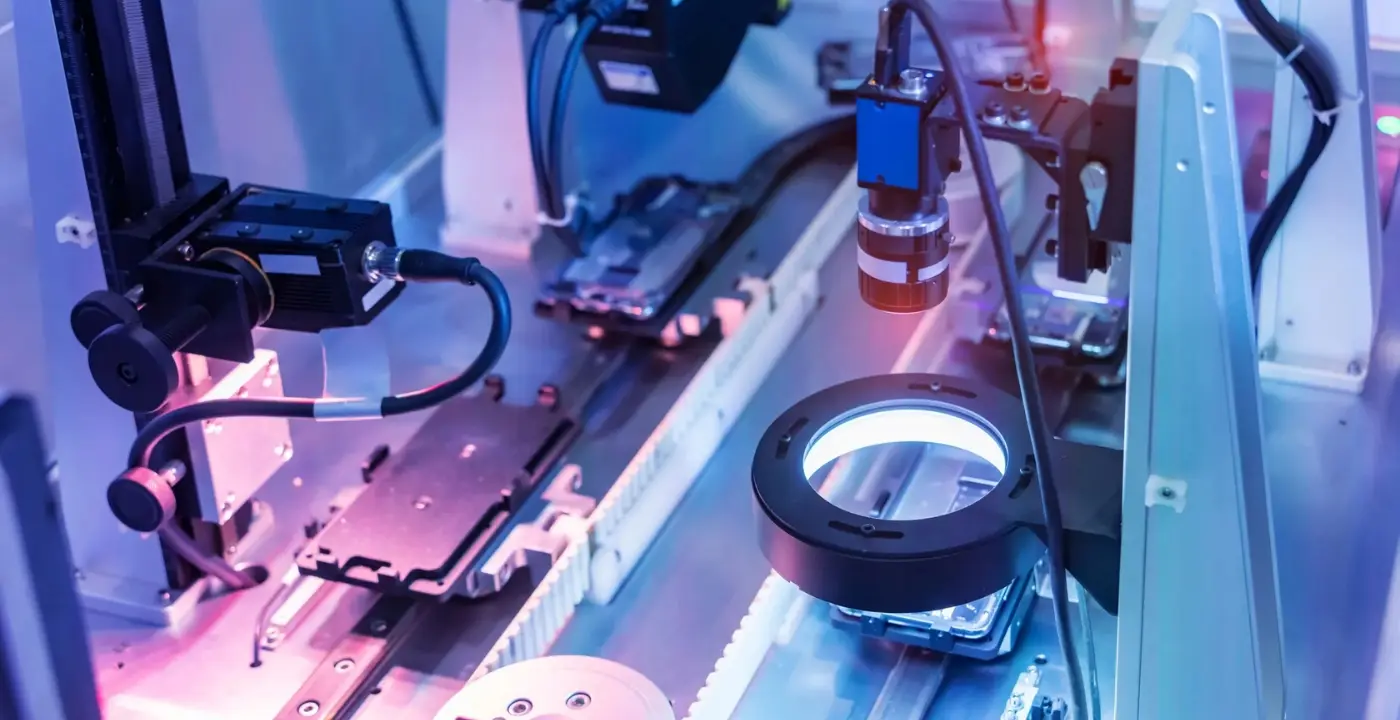

- High‑Resolution Cameras & Specialized Optics
Deploy area-scan cameras with telecentric or zoom lenses to ensure accurate, distortion-free imaging. - Precision Lighting
Employ dome, ring, and line-scan illumination tailored to the product geometry for consistent edge and texture detection. - AI‑Enriched Image Processing Software
The back-end AI engine identifies surface flaws, dimensional anomalies, assembly errors, and more—with pixel-level precision. - Cloud‑Based Reporting & Traceability
Inspection results and images are logged to the cloud, timestamped, and directly linked to product identifiers. This ensures easy lookup during warranty review.
4. Workflow: From Production to Warranty Resolution
Step 1: Inline Inspection
- Products pass through AOI stations during and after assembly.
- Cameras capture every unit; AI pinpoints defects—scratches, misalignments, dents.
- Automated reports log defect type, severity, location, and time stamp.
Step 2: Assembly Verification
- Verification cameras confirm bolt placements, wire harness connections, solder joints, and proper component engagement.
- The system enforces Standard Operating Procedures (SOP) and flags any skipped or misassembled steps.
Step 3: Data Logging & Cloud Upload
- All inspection outcomes are tied to serial numbers and stored in a searchable cloud database.
- Each event is digitally traceable to specific operators, shifts, and stations.
Step 4: Warranty Claim Handling
- Field failures trigger automated trace retrieval based on the product’s serial number.
- Infra‑line images and assembly logs are matched against reported symptoms.
- Manufacturers can approve or refute claims with objective data—and identify systemic issues swiftly.
5. AI-Powered Analysis: Accuracy and Consistency
Traditional inspection systems rely on rigid rule-based algorithms and fixed thresholds. While effective for certain flaws, they often struggle with subtle, irregular, or low-contrast defects. The integration of AI amplifies defect detection capabilities:
- Semantic segmentation identifies crack patterns, coating irregularities, and print smudges
- Contextual anomaly detection spots abnormalities in texture, gloss or finish
- Adaptive learning models reduce false positives and improve recall over time
This AI-driven precision dramatically enhances reliability—and minimizes unwarranted warranty payouts.
6. Key Benefits of an AOI‑Enhanced Warranty Management System
Benefit | Result |
Higher Quality Control | Defects are caught pre-shipping with sub-millimeter accuracy. |
Complete Traceability | Every inspection and assembly event is logged with exact timing and location. |
Objective Warranty Review | Decisions are backed by visual evidence—no guesswork. |
Faster Root Cause Analysis | Recurrence patterns traceable to batch, process, or operator. |
Fewer Warranty Costs | Early detection prevents field returns and improves margin. |
Operational Efficiency | Moves from manual inspection to automated throughput. |
7. Industry Use Cases
- Electronics Manufacturing
- AOI systems detect solder defects, misaligned components, and missing features.
- Warranty logs include print-level images tied to each board’s serial number.
- AOI systems detect solder defects, misaligned components, and missing features.
- Automotive Assembly
- Cameras validate wire connector orientation, fastener torque, and hose routing.
- Warranty claims for misassembled subsystems resolved via logged-stage verification.
- Cameras validate wire connector orientation, fastener torque, and hose routing.
- Medical Device Production
- Micron‑scale surface defect detection ensures compliance with medical safety standards.
- Batch-level traceability supports both warranty and regulatory documentation.
- Micron‑scale surface defect detection ensures compliance with medical safety standards.
- Appliance Manufacturing
- Surface and mechanical integrity inspected before packaging.
- Defect data fed back for design or process iteration.
- Surface and mechanical integrity inspected before packaging.
8. Implementing Your AOI‑Based Warranty System
- Assessment
- Identify high-risk points—areas prone to failure or warranty claims.
- Identify high-risk points—areas prone to failure or warranty claims.
- Technology Integration
- Install machine vision system stations with AOI capabilities at inspection and verification points.
- Install machine vision system stations with AOI capabilities at inspection and verification points.
- AI Model Training
- Curate defect image datasets to train models.
- Validate and refine detection performance through iterative testing.
- Curate defect image datasets to train models.
- Cloud Setup & Traceability
- Implement secure cloud infrastructure to capture logs and image stacks.
- Implement secure cloud infrastructure to capture logs and image stacks.
- Process Adjustment
- Automate responses to detected anomalies—reject, alert, step‑in for manual review.
- Automate responses to detected anomalies—reject, alert, step‑in for manual review.
- Warranty Workflow Integration
- Connect backend systems so service teams can retrieve visual evidence on-demand.
9. Real-World ROI and Warranty Optimization
Companies deploying an AOI system with machine vision system analytics and warranty integration report:
- 50–70% reduction in warranty costs, thanks to early defect interception.
- 30–50% faster claim resolution, with evidence-backed decision-making.
- Better customer satisfaction, as complaints are resolved objectively and promptly.
- Design for reliability, driven by recurring defect trends visible at the cloud dashboard.
These gains underscore why proactive inspection—inside the manufacturing line—is far more effective than reactive field servicing.
10. Future Trends
- 3D AOI integration adds volume metrics such as solder fillet height and component placement depth.
- Expanded AI capabilities include generative augmentation and self‑learning detection
- Industry 4.0 readiness, with warranty feedback loops tied into MES/ERP dashboards for continuous improvement.
A modern warranty management system must do more than track claims—it must integrate quality inspection, assembly verification, and automated analytics to preempt issues before escalation. By adopting a combined machine vision system and AOI system, manufacturers can prevent defective product escapes, resolve claims with confidence, and transform the warranty cycle into a strategic asset.
If you’re ready to reduce warranty exposure and elevate your product quality, consider integrating an AI-powered AOI system into your machine vision system and warranty management system strategy. Our experts can help plan your roadmap—from inspection station design to cloud forensic traceability and AI model training.
Reach out today to explore how automated visual intelligence can future‑proof your warranty quality and customer trust.
